[ARTICLE] Detection of movement onset using EMG signals for upper-limb exoskeletons in reaching tasks – Full Text

Abstract

Background

To assist people with disabilities, exoskeletons must be provided with human-robot interfaces and smart algorithms capable to identify the user’s movement intentions. Surface electromyographic (sEMG) signals could be suitable for this purpose, but their applicability in shared control schemes for real-time operation of assistive devices in daily-life activities is limited due to high inter-subject variability, which requires custom calibrations and training. Here, we developed a machine-learning-based algorithm for detecting the user’s motion intention based on electromyographic signals, and discussed its applicability for controlling an upper-limb exoskeleton for people with severe arm disabilities.

Methods

Ten healthy participants, sitting in front of a screen while wearing the exoskeleton, were asked to perform several reaching movements toward three LEDs, presented in a random order. EMG signals from seven upper-limb muscles were recorded. Data were analyzed offline and used to develop an algorithm that identifies the onset of the movement across two different events: moving from a resting position toward the LED (Go-forward), and going back to resting position (Gobackward). A set of subject-independent time-domain EMG features was selected according to information theory and their probability distributions corresponding to rest and movement phases were modeled by means of a two-component Gaussian Mixture Model (GMM). The detection of movement onset by two types of detectors was tested: the first type based on features extracted from single muscles, whereas the second from multiple muscles. Their performances in terms of sensitivity, specificity and latency were assessed for the two events with a leave one-subject out test method.

Results

The onset of movement was detected with a maximum sensitivity of 89.3% for Go-forward and 60.9% for Go-backward events. Best performances in terms of specificity were 96.2 and 94.3% respectively. For both events the algorithm was able to detect the onset before the actual movement, while computational load was compatible with real-time applications.

Conclusions

The detection performances and the low computational load make the proposed algorithm promising for the control of upper-limb exoskeletons in real-time applications. Fast initial calibration makes it also suitable for helping people with severe arm disabilities in performing assisted functional tasks.

Background

Exoskeletons are wearable robots exhibiting a close physical and cognitive interaction with the human users. Over the last years, several exoskeletons have been developed for different purposes, such as augmenting human strength [1], rehabilitating neurologically impaired individuals [2] or assisting people affected by many neuro-musculoskeletal disorders in activities of daily life [3]. For all these applications, the design of cognitive Human-Robot Interfaces (cHRIs) is paramount [4]; indeed, understanding the users’ intention allows to control the device with the final goal to facilitate the execution of the intended movement. The flow of information from the human user to the robot control unit is particularly crucial when exoskeletons are used to assist people with compromised movement capabilities (e.g. post-stroke or spinal-cord-injured people), by amplifying their movements with the goal to restore functions.

In recent years, different approaches have been pursued to design cHRIs, based on invasive and non-invasive approaches. Implantable electrodes, placed directly into the brain or other electrically excitable tissues, record signals directly from the peripheral or central nervous system or muscles, with high resolution and high precision [5]. Non-invasive approaches exploit different bio-signals: some examples are electroencephalography (EEG) [6], electrooculography (EOG) [7], and brain-machine interfaces (BMI) combining the two of them [8910]. In addition, a well-consolidated non-invasive approach is based on surface electromyography (sEMG) [11], which has been successfully used for controlling robotic prostheses and exoskeletons due to their inherent intuitiveness and effectiveness [121314]. Compared to EEG signals, sEMG signals are easy to be acquired and processed and provide effective information on the movement that the person is executing or about to start executing. Despite the above-mentioned advantages, the use of surface EMG signals still has several drawbacks, mainly related to their time-varying nature and the high inter-subject variability, due to differences in the activity level of the muscles and in their activation patterns [1115], which requires custom calibrations and specific training for each user [16]. For these reasons, notwithstanding the intuitiveness of EMG interfaces, it is still under discussion their efficacy and usability in shared human-machine control schemes for upper-limb exoskeletons. Furthermore, the need for significant signal processing can limit the use of EMG signals in on-line applications, for which fast detection is paramount. In this scenario, machine learning methods have been employed to recognize the EMG onset in real time, using different classifiers such as Support Vector Machines, Linear Discriminant Analysis, Hidden Markov Models, Neural Networks, Fuzzy Logic and others [151617]. In this process, a set of features is previously selected in time, frequency, or time-frequency domains [18]. Time-domain features extract information associated to signal amplitude in non-fatiguing contractions; when fatigue effects are predominant, frequency-domain features are more representative; finally, time-frequency domain features better elicit transient effects of muscular contractions. Before feeding the features into the classifier, dimensionality reduction is usually performed, to increase classification performances while reducing complexity [19]. The most common strategies for reduction are: i) feature projection, to map the set of features into a new set with reduced dimensionality (e.g., linear mapping through Principal Component Analysis); ii) feature selection, in which a subset of features is selected according to specific criteria, aimed at optimizing a chosen objective function. All the above-mentioned classification approaches ensure good performance under controlled laboratory conditions. Nevertheless, in order to be used effectively in real-life scenarios, smart algorithms must be developed, which are able to adapt to changes in the environmental conditions and intra-subject variability (e.g. changes of background noise level of the EMG signals), as well as to the inter-subject variability [20].

In this paper, we exploited a cHRI combining sEMG and an upper-limb robotic exoskeleton, to fast detect the users’ motion intention. We implemented offline an unsupervised machine-learning algorithm, using a set of subject-independent time-domain EMG features, selected according to information theory. The probability distributions of rest and movement phases of the set of features were modelled by means of a two-component Gaussian Mixture Model (GMM). The algorithm simulates an online application and implements a sequential method to adapt GMM parameters during the testing phase, in order to deal with changes of background noise levels during the experiment, or fluctuations in EMG peak amplitudes due to muscle adaptation or fatigue. Features were extracted from two different signal sources, namely onset detectors, which were tested offline and their performance in terms of sensitivity (or true positive rate), specificity (or true negative rate) and latency (delay on onset detection) were assessed for two different events, i.e. two transitions from rest to movement phases at different initial conditions. The two events were selected in order to replicate a possible application scenario of the proposed system. Based on the results we obtained, we discussed the applicability of the algorithm to the control of an upper-limb exoskeleton used as an assistive device for people with severe arm disabilities.

Materials and methods

Experimental setup

The experimental setup includes: (i) an upper-limb powered exoskeleton (NESM), (ii) a visual interface, and (iii) a commercial EMG recording system (TeleMyo 2400R, Noraxon Inc., AZ, US).

NESM upper-limb exoskeleton

NESM (Fig. 1a) is a shoulder-elbow powered exoskeleton designed for the mobilization of the right upper limb [2122], developed at The BioRobotics Institute of Scuola Superiore Sant’Anna (Italy). The exoskeleton mechanical structure hangs from a standing structure and comprises four active and eight passive degrees of freedom (DOFs), along with different mechanisms for size regulations to improve comfort and wearability of the device.

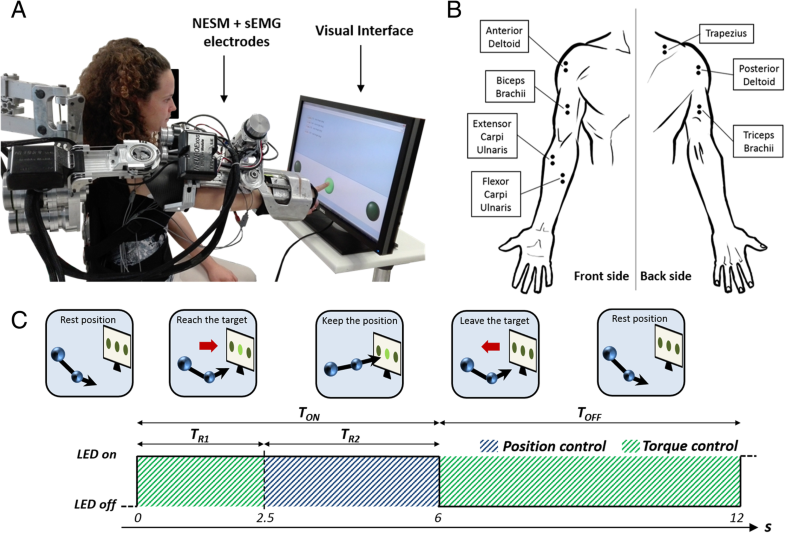

Fig. 1

Fig. 1a Experimental setup, comprising NESM, EMG electrodes and the visual interface; b Location of the electrodes for EMG acquisition; c Timing and sequence of action performed by the user during a single trial

[…]

Continue —-> Detection of movement onset using EMG signals for upper-limb exoskeletons in reaching tasks | Journal of NeuroEngineering and Rehabilitation | Full Text

, , , , , , , , , ,

Leave a comment

[ARTICLE] Physiological and kinematic effects of a soft exosuit on arm movements – Full Text

Abstract

Background

Soft wearable robots (exosuits), being lightweight, ergonomic and low power-demanding, are attractive for a variety of applications, ranging from strength augmentation in industrial scenarios, to medical assistance for people with motor impairments. Understanding how these devices affect the physiology and mechanics of human movements is fundamental for quantifying their benefits and drawbacks, assessing their suitability for different applications and guiding a continuous design refinement.

Methods

We present a novel wearable exosuit for assistance/augmentation of the elbow and introduce a controller that compensates for gravitational forces acting on the limb while allowing the suit to cooperatively move with its wearer. Eight healthy subjects wore the exosuit and performed elbow movements in two conditions: with assistance from the device (powered) and without assistance (unpowered). The test included a dynamic task, to evaluate the impact of the assistance on the kinematics and dynamics of human movement, and an isometric task, to assess its influence on the onset of muscular fatigue.

Results

Powered movements showed a low but significant degradation in accuracy and smoothness when compared to the unpowered ones. The degradation in kinematics was accompanied by an average reduction of 59.20±5.58% (mean ± standard error) of the biological torque and 64.8±7.66% drop in muscular effort when the exosuit assisted its wearer. Furthermore, an analysis of the electromyographic signals of the biceps brachii during the isometric task revealed that the exosuit delays the onset of muscular fatigue.

Conclusions

The study examined the effects of an exosuit on the characteristics of human movements. The suit supports most of the power needed to move and reduces the effort that the subject needs to exert to counteract gravity in a static posture, delaying the onset of muscular fatigue. We interpret the decline in kinematic performance as a technical limitation of the current device. This work suggests that a powered exosuit can be a good candidate for industrial and clinical applications, where task efficiency and hardware transparency are paramount.

Background

In the never-ending quest to push the boundaries of their motor performance, humans have designed a wealth of wearable robotic devices. In one of the earliest recorded attempts to do so, in 1967, Mosher aspired to create a symbiotic unit that would have the “…alacrity of man’s information and control system coupled with the machine’s power and ruggedness” [1]. His design of the Hardiman, although visionary, ran into fundamental technological limitations.

Advances in materials science, electronics and energy storage have since enabled an exponential growth of the field, with state-of-the-art exoskeletons arguably accomplishing Mosher’s vision [2]. Wearable robotic technology has been successful in augmenting human strength during locomotion [3], reducing the metabolic cost of human walking [45], restoring ambulatory capabilities to paraplegic patients [6], assisting in rehabilitating stroke patients [789], harvesting energy from human movements [10] and helping to study fundamental principles underlying human motor control [1112].

These feats were achieved with machines made of rigid links of metal and capable of accurately and precisely delivering high forces to their wearer. While this is undeniably an advantage, it comes at a cost: 1) a significant inertia, which affects both the kinematics of human movement and the power requirements of the device; 2) the need for the joints of the robot to be aligned with the biological joints [13], resulting in increased mechanical complexity and size [14]; 3) a strong cosmetic impact, shown to be linked with psychological health and well-being [15].

The recent introduction of soft materials to transmit forces and torques to the human body [16] has allowed to design wearable robotic devices on the other side of the spectrum: lightweight, low-profile and compliant machines that sacrifice accuracy and magnitude of assistance for the sake of portability and svelteness.

Soft exoskeletons, or exosuits, are clothing-like devices made of fabric or elastomers that wrap around a person’s limb and work in parallel with his/her muscles [1718]. Characteristic of exosuits is that they rely on the structural integrity of the human body to transfer reaction forces between body segments, rather than having their own frame, thus acting more like external muscles than an external skeleton. Their intrinsic compliance removes the need for alignment with the joints and their low-profile allows to wear them underneath everyday clothing.

Exosuits actively transmit power to the human body either using cables, moved by electric motors, or soft pneumatic actuators, embedded in the garment. The latter paradigm was probably among the first to be proposed [19] and has been explored to assist stroke patients during walking [20], to increase shoulder mobility in subjects with neuromuscular conditions [21], to help elbow movements [22] and for rehabilitation purposes to train and aid grasping [232425].

Cable-driven exosuits, instead, include a DC motor that transmits power to the suit using Bowden cables. This flexible transmission allows to locate the actuation stage where its additional weight has the least metabolic impact on its wearer. Using this paradigm to provide assistance to the lower limbs has resulted in unprecedented levels of walking economy in healthy subjects [26] and improved symmetry and efficiency of mobility in stroke patients [27]. Similar principles were used to provide active support to hip and knee extension, reducing activation of the gluteus maximus in sit-to-stand and stand-to-sit transitions [28].

Cable-driven exosuits seem to work particularly well for lower-limbs movements, where small bursts of well-timed assistance can have a big impact on the dynamics and metabolic cost of locomotion [29]. Yet, Park et al. have shown that they have the potential for assisting the upper-limbs in quasi-static movements too: using a tendon-driving mechanism, a textile interface and an elastic component they found a significant reduction in the activity of the deltoid muscle when supporting the weight of the arm [30].

Similar results were reported by Chiaradia et al., where a soft exosuit for the elbow was shown to reduce the activation of the biceps brachii muscle in dynamic movements [31], and by Khanh et al., where the same device was used to improve the range of motion of a patient suffering from bilateral brachial plexus injury [32].

While there is extensive work on the analysis of the effects of wearing a soft exosuit on the kinematics, energetics and muscular activation during walking [33], the authors are unaware of comparable studies on movements of the upper limbs, whose variety of volitional motions is fundamentally different from the rhythmic nature of walking.

Understanding how these devices affect the physiology and mechanics of human movements is fundamental for quantifying their benefits and drawbacks, assessing their suitability for different applications and guiding a continuous data-driven design refinement.

In this study we investigate the kinematic and physiological effects of wearing a cable-driven exosuit to support elbow movements. We hypothesize that the low inertia and soft nature of the exosuit will allow it to work in parallel with the user’s muscles, delaying the onset of fatigue while having little to no impact on movement kinematics.

We propose a variation of the design and controller presented in [3234] and introduce a controller that both detects the wearer’s intention, allowing the suit to quickly shadow the user’s movements, and compensates for gravitational forces acting on the limb, thus reducing the muscular effort required for holding a static posture. We collect kinematic, dynamic and myoelectric signals from subjects wearing the device, finding that the exosuit affects motion smoothness, significantly reduces muscular effort and delays the onset of fatigue. The analysis offers interesting insights on the viability of using this technology for human augmentation/assistance and medical purposes.

Methods

Exosuit design

An exosuit is a device consisting of a frame made of soft material that wraps around the human body and transmits forces to its wearer’s skeletal structure. In a cable-driven exosuit, artificial tendons are routed along a targeted joint and attached to anchor points on both of its sides. When the tendons are tensioned they deliver an assistive moment to the joint.

[…]

Continue —>  Physiological and kinematic effects of a soft exosuit on arm movements | Journal of NeuroEngineering and Rehabilitation | Full Text

, , , , , , , , ,

Leave a comment

[Abstract] Investigation of multi-joint coordinated upper limb rehabilitation assisted with electromyography (EMG)-driven neuromuscular electrical stimulation (NMES)-robot after stroke

Abstract

More than 80% of stroke survivors worldwide suffer from permanent upper limb motor deficits. Restoration of upper limb motor functions in conventional rehabilitation remains challenging; the main difficulties are as follows: 1) lack of intensive, repetitive practice in manually delivered treatment; 2) lack of coordination management of upper limb motor tasks, particularly those involving the distal joints, e.g., the wrist and the hand; and 3) lack of understanding of the optimal joint supportive scheme in task-oriented upper limb training. More effective training strategies are necessary for upper limb rehabilitation following stroke. Robots have proved to be valuable assistants in labour-demanding post-stroke rehabilitation, with a controllable mechanical design and repeatable dynamic support in physical training. A series of rehabilitation robots for multi-joint practices were successfully designed in our previous works. In this work, we proposed a device-assisted multi-joint coordinated strategy for post-stroke upper limb training. The objectives of the study were as follows: 1) To evaluate the rehabilitation effectiveness of multi-joint coordinated upper limb practice assisted by an electromyography (EMG)-driven neuromuscular electric stimulation (NMES)-robot for stroke survivors in both the subacute and chronic stages. 2) To compare different joint supportive schemes using NMES-robots and identify the optimized scheme for upper limb rehabilitation. The objectives were achieved through three independent clinical trials using common clinical assessments, namely, the Fugl-Meyer Assessment (FMA), Modified Ashworth Scales (MAS), Action Research Arm Test (ARAT), and Functional Independence Measurement (FIM), and cross-session EMG evaluations to trace the recovery progress of individual muscle activities (i.e. EMG activation level) and muscular coordination (i.e. Co-contraction Index, CI) between a pair of muscles.
The first clinical randomized controlled trial (RCT) was conducted to investigate the clinical effects and rehabilitation effectiveness of the new training strategy in the subacute stroke period. Subjects were randomly assigned to two groups and received either 20 sessions of NMES-robot-assisted training (NMES-robot group, n=14) or time-matched conventional treatments (control group, n=10). Significant improvements were achieved in FMA (full score and shoulder/elbow), ARAT, and FIM for both groups [P<0.001, effect sizes (EFs)>0.279], whereas significant improvements in FMA (wrist/hand) and MAS (wrist) after treatment were only observed in the NMES-robot group (P<0.05, EFs>0.145), with the outcomes maintained for 3 months. In the NMES-robot group, CIs of the muscle pairs of biceps brachii and flexor carpi radialis (BIC&FCR) and biceps brachii and triceps brachii (BIC&TRI) were significantly reduced and the EMG activation level of the FCR decreased significantly. The result indicated comparable proximal motor improvements in both groups and better distal motor outcomes and more effective release of muscle spasticity across the whole upper limb in the NMES-robot group. The second part of the work was a clinical trial with a single-group design. Recruited chronic stroke patients (n=17) received 20 sessions of NMES-robot-assisted multi-joint coordinated upper limb training. Significant improvements were observed in FMA (full score and shoulder/elbow), ARAT, and FIM (P<0.05, EFs>0.157) and maintained for 3 months. CIs of the FCR&TRI and BIC&TRI muscle pairs and EMG activation levels of the FCR and BIC significantly decreased. The results indicated that the new training strategy was effective for upper limb recovery in the chronic stroke, with the long sustainability of the motor outcomes. In the third trial, another clinical RCT was conducted to investigate the training effects of different joint supportive schemes. The recruited chronic subjects were randomly assigned to receive task-oriented multi-joint practices with NMES-robotic support either to the finger-palm (hand group, n=15) or to the wrist-elbow (sleeve group, n=15). Significant improvements in FMA (full score and shoulder/elbow) and ARAT (P<0.05, EFs>0.147) were observed in both groups, whereas significant improvements in FMA (wrist/hand) and MAS (finger, wrist, and elbow) (P<0.05, EFs>0.149) were only observed in the hand group. These results indicated that the distal supportive scheme was more effective in distal motor recovery and whole arm spasticity control than the proximal supportive one under the same training strategy. In conclusion, NME-robot-assisted multi-joint coordinated training was able to achieve significant motor outcomes and effective muscle spasticity control in the entire upper limb, especially at the distal segments, i.e., the wrist and the fingers, in both subacute and chronic stroke patients. Moreover, the distal supportive scheme proved more effective than the proximal supportive scheme in multi-joint coordinated upper limb training.

via Investigation of multi-joint coordinated upper limb rehabilitation assisted with electromyography (EMG)-driven neuromuscular electrical stimulation (NMES)-robot after stroke | PolyU Institutional Research Archive



, , , , , , , , , , ,

Leave a comment

[ARTICLE] Effectiveness of Robot-Assisted Upper Limb Training on Spasticity, Function and Muscle Activity in Chronic Stroke Patients Treated With Botulinum Toxin: A Randomized Single-Blinded Controlled Trial

Abstract

Background: The combined use of Robot-assisted UL training and Botulinum toxin (BoNT) appear to be a promising therapeutic synergism to improve UL function in chronic stroke patients.

Objective: To evaluate the effects of Robot-assisted UL training on UL spasticity, function, muscle strength and the electromyographic UL muscles activity in chronic stroke patients treated with Botulinum toxin.

Methods: This single-blind, randomized, controlled trial involved 32 chronic stroke outpatients with UL spastic hemiparesis. The experimental group (n = 16) received robot-assisted UL training and BoNT treatment. The control group (n = 16) received conventional treatment combined with BoNT treatment. Training protocols lasted for 5 weeks (45 min/session, two sessions/week). Before and after rehabilitation, a blinded rater evaluated patients. The primary outcome was the Modified Ashworth Scale (MAS). Secondary outcomes were the Fugl-Meyer Assessment Scale (FMA) and the Medical Research Council Scale (MRC). The electromyographic activity of 5 UL muscles during the “hand-to-mouth” task was explored only in the experimental group and 14 healthy age-matched controls using a surface Electromyography (EMGs).

Results: No significant between-group differences on the MAS and FMA were measured. The experimental group reported significantly greater improvements on UL muscle strength (p = 0.004; Cohen’s d = 0.49), shoulder abduction (p = 0.039; Cohen’s d = 0.42), external rotation (p = 0.019; Cohen’s d = 0.72), and elbow flexion (p = 0.043; Cohen’s d = 1.15) than the control group. Preliminary observation of muscular activity showed a different enhancement of the biceps brachii activation after the robot-assisted training.

Conclusions: Robot-assisted training is as effective as conventional training on muscle tone reduction when combined with Botulinum toxin in chronic stroke patients with UL spasticity. However, only the robot-assisted UL training contributed to improving muscle strength. The single-group analysis and the qualitative inspection of sEMG data performed in the experimental group showed improvement in the agonist muscles activity during the hand-to-mouth task.

Clinical Trial Registration: www.ClinicalTrials.gov, identifier: NCT03590314

Introduction

Upper limb (UL) sensorimotor impairments are one of the major determinants of long-term disability in stroke survivors (). Several disturbances are the manifestation of UL impairments after stroke (i.e., muscle weakness, changes in muscle tone, joint disturbances, impaired motor control). However, spasticity and weakness are the primary reason for rehabilitative intervention in the chronic stages (). Historically, spasticity refers to a velocity-dependent increase in tonic stretch reflexes with exaggerated tendon jerks resulting from hyperexcitability of the stretch reflex () while weakness is the loss of the ability to generate the normal amount of force.

From 7 to 38% of post-stroke patients complain of UL spasticity in the first year (). The pathophysiology of spasticity is complicated, and new knowledge has progressively challenged this definition. Processes involving central and peripheral mechanisms contribute to the spastic movement disorder resulting in abnormal regulation of tonic stretch reflex and increased muscle resistance of the passively stretched muscle and deficits in agonist and antagonist coactivation (). The resulting immobilization of the muscle at a fixed length for a prolonged time induces secondary biomechanical and viscoelastic properties changes in muscles and soft tissues, and pain (). These peripheral mechanisms, in turn, leads to further stiffness, and viscoelastic muscle changes (). Whether the muscular properties changes may be adaptive and secondary to paresis are uncertain. However, the management of UL spasticity should combine treatment of both the neurogenic and peripheral components of spasticity ().

UL weakness after stroke is prevalent in both acute and chronic phases of recovery (). It is a determinant of UL function in ADLs and other negative consequences such as bone mineral content (), atrophy and altered muscle pattern of activation. Literature supports UL strengthening training effectiveness for all levels of impairment and in all stages of recovery (). However, a small number of trials have been performed in chronic subgroup patients, and there is still controversy in including this procedure in UL rehabilitation ().

Botulinum toxin (BoNT) injection in carefully selected muscles is a valuable treatment for spastic muscles in stroke patients improving deficits in agonist and antagonist coactivation, facilitating agonist recruitment and increasing active range of motion (). However, improvements in UL activity or performance is modest (). With a view of improving UL function after stroke, moderate to high-quality evidence support combining BoNT treatment with other rehabilitation procedures (). Specifically, the integration of robotics in the UL rehabilitation holds promise for developing high-intensity, repetitive, task-specific, interactive treatment of upper limb (). The combined use of these procedures to compensate for their limitations has been studied in only one pilot RCT reporting positive results in UL function (Fugl-Meyer UL Assessment scale) and muscular activation pattern (). With the limits of the small sample, the results support the value of combining high-intensity UL training by robotics and BoNT treatment in patients with UL spastic paresis.

Clinical scales are currently used to assess the rehabilitation treatment effects, but these outcome measures may suffer from some drawbacks that can be overcome by instrumental assessment as subjectivity, limited sensitivity, and the lack of information on the underlying training effects on motor control (). Instrumental assessment, such as surface electromyography (sEMG) during a functional task execution allows assessing abnormal activation of spastic muscles and deficits of voluntary movements in patients with stroke.

Moreover, the hand-to-mouth task is representative of Activities of Daily Life (ADL) such as eating and drinking. Kinematic analysis of the hand-to-mouth task has been widely used to assess UL functions in individuals affected by neurological diseases showing adequate to more than adequate test-retest reliability in healthy subjects (). The task involves flexing the elbow a slightly flexing the shoulder against gravity, and it is considered to be a paradigmatic functional task for the assessment of spasticity and strength deficits on the elbow muscles (). Although sEMG has been reported to be a useful assessment procedure to detect muscle activity improvement after rehabilitation, limited results have been reported ().

The primary aim of this study was to explore the therapeutic synergisms of combined robot-assisted upper limb training and BoNT treatment on upper limb spasticity. The secondary aim was to evaluate the treatment effects on UL function, muscle strength, and the electromyographic activity of UL muscles during a functional task.

The combined treatment would contribute to decrease UL spasticity and improve function through a combination of training effects between BoNT neurolysis and the robotic treatment. A reduction of muscle tone would parallel improvement in muscle strength ought to the high-intensity, repetitive and task-specific robotic training. Since spasticity is associated with abnormal activation of shortening muscles and deficits in voluntary movement of the UL, the sEMG assessment would target these impairments ().

Materials and Methods

Trial Design

A single-blind RCT with two parallel group is reported. The primary endpoint was the changes in UL spasticity while the secondary endpoints were changes in UL function, muscle strength and the electromyographic activity of UL muscles during a functional task. The study was conducted according to the tenets of the Declaration of Helsinki, the guidelines for Good Clinical Practice, and the Consolidated Standards of Reporting Trials (CONSORT), approved by the local Ethics Committee “Nucleo ricerca clinica–Research and Biostatistic Support Unit” (prog n.2366), and registered at clinical trial (NCT03590314).

Patients

Chronic post-stroke patients with upper-limb spasticity referred to the Neurorehabilitation Unit (AOUI Verona) and the Physical Medicine and Rehabilitation Section, “OORR” Hospital (University of Foggia) were assessed for eligibility.

Inclusion criteria were: age > 18 years, diagnosis of ischemic or hemorrhagic first-ever stroke as documented by a computerized tomography scan or magnetic resonance imaging, at least 6 months since stroke, Modified Ashworth Scale (MAS) score (shoulder and elbow) ≤ 3 and ≥1+ (), BoNT injection within the previous 12 weeks of at least one of muscles of the affected upper limb, Mini-Mental State Examination (MMSE) score ≥24 () and Trunk Control Test score = 100/100 ().

Exclusion criteria were: any rehabilitation intervention in the 3 months before recruitment, bilateral cerebrovascular lesion, severe neuropsychologic impairment (global aphasia, severe attention deficit or neglect), joint orthopedic disorders.

All participants were informed regarding the experimental nature of the study. Informed consent was obtained from all subjects. The local ethics committee approved the study.

Interventions

Each patient underwent a BoNT injection in the paretic limb. The dose of BoNT injected into the target muscle was based on the severity of spasticity in each case. Different commercial formulations of BoNT were used according to the pharmaceutical portfolio contracts of our Hospitals (Onabotulinumtoxin A, Abobotulinumtoxin A, and Incobotulinumtoxin A). The dose, volume and number of injection sites were set accordingly. A Logiq ® Book XP portable ultrasound system (GE Healthcare; Chalfont St. Giles, UK) was used to inject BoNT into the target muscle.

Before the start of the study authors designed the experimental (EG) and the control group (CG) protocols. Two physiotherapists, one for each group, carried out the rehabilitation procedures. Patients of both groups received ten individual sessions (45 min/session, two sessions/week, five consecutive weeks). Treatments were performed in the rehabilitative gym of the G. B. Rossi University Hospital Neurological Rehabilitation Unit, or “OORR” Hospital.

Robot-Assisted UL Training

The Robot-assisted UL Training group was treated using the electromechanical device Armotion (Reha Technology, Olten, Switzerland). It is an end-effector device that allows goal-directed arm movements in a bi-dimensional space with visual feedback. It offers different training modalities such as passive, active, passive-active, perturbative, and assistive modes. The robot can move, drive or oppose the patient’s movement and allows creating a personalized treatment, varying parameters such as some repetitions, execution speed, resistance degree of motion. The exercises available from the software are supported by games that facilitate the functional use of the paretic arm (). The robot is equipped with a control system called “impedance control” that modulates the robot movements for adapting to the motor behavior of the patient’s upper limb. The joints involved in the exercises were the shoulder and the elbow, is the wrist fixed to the device.

The Robot-assisted UL Training consisted of passive mobilization and stretching exercises for affected UL (10 min) followed by robot-assisted exercises (35 min). Four types of exercises contained within the Armotion software and amount of repetitions were selected as follows: (i) “Collect the coins” (45–75 coins/10 min), (ii) “Drive the car” (15–25 laps/10 min), (iii) “Wash the dishes” (40–60 repetitions/10 min), and (iv) “Burst the balloons” (100–150 balloons/5 min) (Figure 1). All exercises were oriented to achieving several goals in various directions, emphasizing the elbow flexion-extension and reaching movement. The robot allows participants to execute the exercises through an “assisted as needed” control strategy. For increment the difficulty, we have varied the assisted and non-assisted modality, increasing the number of repetitions over the study period.

An external file that holds a picture, illustration, etc.
Object name is fneur-10-00041-g0001.jpg

Figure 1
The upper limb robot-assisted training setting.

Conventional Training

The conventional training consisted of UL passive mobilization and stretching (10 min) followed by UL exercises (35 min) that incorporated single or multi-joint movements for the scapula, shoulder, and elbow, performed in different positions (i.e., supine and standing position). The increase of difficulty and progression of intensity were obtained by increasing ROM, repetitions and performing movements against gravity or slight resistance (). Training parameters were recorded on the patient’s log. […]



Continue —>  Effectiveness of Robot-Assisted Upper Limb Training on Spasticity, Function and Muscle Activity in Chronic Stroke Patients Treated With Botulinum Toxin: A Randomized Single-Blinded Controlled Trial

, , , , , , , , ,

Leave a comment

[Abstract + References] Synergy-Based FES for Post-Stroke Rehabilitation of Upper-Limb Motor Functions

Abstract

Functional electrical stimulation (FES) is capable of activating muscles that are under-recruited in neurological diseases, such as stroke. Therefore, FES provides a promising technology for assisting upper-limb motor functions in rehabilitation following stroke. However, the full benefits of FES may be limited due to lack of a systematic approach to formulate the pattern of stimulation. Our preliminary work demonstrated that it is feasible to use muscle synergy to guide the generation of FES patterns.In this paper, we present a methodology of formulating FES patterns based on muscle synergies of a normal subject using a programmable multi-channel FES device. The effectiveness of the synergy-based FES was tested in two sets of experiments. In experiment one, the instantaneous effects of FES to improve movement kinematics were tested in three patients post ischemic stroke. Patients performed frontal reaching and lateral reaching tasks, which involved coordinated movements in the elbow and shoulder joints. The FES pattern was adjusted in amplitude and time profile for each subject in each task. In experiment two, a 5-day session of intervention using synergy-based FES was delivered to another three patients, in which patients performed task-oriented training in the same reaching movements in one-hour-per-day dose. The outcome of the short-term intervention was measured by changes in Fugl–Meyer scores and movement kinematics. Results on instantaneous effects showed that FES assistance was effective to increase the peak hand velocity in both or one of the tasks. In short-term intervention, evaluations prior to and post intervention showed improvements in both Fugl–Meyer scores and movement kinematics. The muscle synergy of patients also tended to evolve towards that of the normal subject. These results provide promising evidence of benefits using synergy-based FES for upper-limb rehabilitation following stroke. This is the first step towards a clinical protocol of applying FES as therapeutic intervention in stroke rehabilitation.

I. Introduction

Muscle activation during movement is commonly disrupted due to neural injuries from stroke. A major challenge for stroke rehabilitation is to re-establish the normal ways of muscle activation through a general restoration of motor control, otherwise impairments may be compensated by the motor system through a substitution strategy of task control [1]. In post-stroke intervention, new technologies such as neuromuscular electrical stimulation (NMES) or functional electrical stimulation (FES) offer advantages for non-invasively targeting specific groups of muscles [2]–[4] to restore the pattern of muscle activation. Nevertheless, their effectiveness is limited by lack of a systematic methodology to optimize the stimulation pattern, to implement the optimal strategy in clinical settings, and to design a protocol of training towards the goal of restoring motor functions. This pioneer study addresses these issues in clinical application with a non-invasive FES technology.

Sign in to Continue Reading

1. M. F. Levin, J. A. Kleim, and S. L. Wolf, “What do motor ‘recovery’ and ‘compensation’ mean in patients following stroke?” Neurorehabilitation Neural Repair, vol. 23, no. 4, pp. 313–319, 2008.

2. G. Alon, A. F. Levitt, and P. A. McCarthy, “Functional electrical stimulation (FES) may modify the poor prognosis of stroke survivors with severe motor loss of the upper extremity: A preliminary study,” Amer. J. Phys. Med. Rehabil., vol. 87, no. 8, pp. 627–636, 2008.

3. W. Rong, “A neuromuscular electrical stimulation (NMES) and robot hybrid system for multi-joint coordinated upper limb rehabilitation after stroke,” J. Neuroeng. Rehabil., vol. 14, no. 1, p. 34, Dec. 2017.

4. J. J. Daly, “Recovery of coordinated gait: Randomized controlled stroke trial of functional electrical stimulation (FES) versus no FES, with weight-supported treadmill and over-ground training,” Neurorehabilitation Neural Repair, vol. 25, no. 7, pp. 588–596, Sep. 2011.

5. R. Nataraj, M. L. Audu, R. F. Kirsch, and R. J. Triolo, “Comprehensive joint feedback control for standing by functional neuromuscular stimulation—A simulation study,” IEEE Trans. Neural Syst. Rehabil. Eng., vol. 18, no. 6, pp. 646–657, Dec. 2010.

6. R. Nataraj, M. L. Audu, and R. J. Triolo, “Restoring standing capabilities with feedback control of functional neuromuscular stimulation following spinal cord injury,” Med. Eng. Phys., vol. 42, pp. 13–25, Apr. 2017.

7. H. Rouhani, M. Same, K. Masani, Y. Q. Li, and M. R. Popovic, “PID controller design for FES applied to ankle muscles in neuroprosthesis for standing balance,” Frontiers Neurosci., vol. 11, p. 347, Jun. 2017.

8. V. K. Mushahwar, P. L. Jacobs, R. A. Normann, R. J. Triolo, and N. Kleitman, “New functional electrical stimulation approaches to standing and walking,” J. Neural Eng., vol. 4, no. 3, pp. S181–S197, Sep. 2007.

9. B. J. Holinski, “Intraspinal microstimulation produces over-ground walking in anesthetized cats,” J. Neural Eng., vol. 13, no. 5, p. 056016, Oct. 2016.

10. M. B. Popovic, D. B. Popovic, T. Sinkjær, A. Stefanovic, and L. Schwirtlich, “Restitution of reaching and grasping promoted by functional electrical therapy,” Artif. Organs, vol. 26, no. 3, pp. 271–275, Mar. 2002.

11. A. B. Ajiboye, “Restoration of reaching and grasping movements through brain-controlled muscle stimulation in a person with tetraplegia: A proof-of-concept demonstration,” Lancet Lond. Engl., vol. 389, no. 10081, pp. 1821–1830, May 2017.

12. J. H. Grill and P. H. Peckham, “Functional neuromuscular stimulation for combined control of elbow extension and hand grasp in C5 and C6 quadriplegics,” IEEE Trans. Rehabil. Eng., vol. 6, no. 2, pp. 190–199, Jun. 1998.

13. M. R. Popovic, T. A. Thrasher, M. E. Adams, V. Takes, V. Zivanovic, and M. I. Tonack, “Functional electrical therapy: Retraining grasping in spinal cord injury,” Spinal Cord, vol. 44, no. 3, pp. 143–151, Mar. 2006.

14. C. Ethier, E. R. Oby, M. J. Bauman, and L. E. Miller, “Restoration of grasp following paralysis through brain-controlled stimulation of muscles,” Nature, vol. 485, no. 7398, pp. 368–371, May 2012.

15. G. Alon, “Use of neuromuscular electrical stimulation in neureorehabilitation: A challenge to all,” J. Rehabil. Res. Develop., vol. 40, no. 6, pp. 9–12, Dec. 2003.

16. G. Alon, A. F. Levitt, and P. A. McCarthy, “Functional electrical stimulation enhancement of upper extremity functional recovery during stroke rehabilitation: A pilot study,” Neurorehabilitation Neural Repair, vol. 21, no. 3, pp. 207–215, Jun. 2007.

17. C. Church, C. Price, A. D. Pandyan, S. Huntley, R. Curless, and H. Rodgers, “Randomized controlled trial to evaluate the effect of surface neuromuscular electrical stimulation to the shoulder after acute stroke,” Stroke, vol. 37, no. 12, pp. 2995–3001, Dec. 2006.

18. J. H. Cauraugh and S. B. Kim, “Chronic stroke motor recovery: Duration of active neuromuscular stimulation,” J. Neurolog. Sci., vol. 215, nos. 1–2, pp. 13–19, Nov. 2003.

19. S. Ferrante, T. Schauer, G. Ferrigno, J. Raisch, and F. Molteni, “The effect of using variable frequency trains during functional electrical stimulation cycling,” Neuromodulation, Technol. Neural Interface, vol. 11, no. 3, pp. 216–226, Jul. 2008.

20. R. W. Fields, “Electromyographically triggered electric muscle stimulation for chronic hemiplegia,” Arch. Phys. Med. Rehabil., vol. 68, no. 7, pp. 407–414, Jul. 1987.

21. G. H. Kraft, S. S. Fitts, and M. C. Hammond, “Techniques to improve function of the arm and hand in chronic hemiplegia,” Arch. Phys. Med. Rehabil., vol. 73, no. 3, pp. 220–227, Mar. 1992.

22. G. van Overeem Hansen, “EMG-controlled functional electrical stimulation of the paretic hand,” Scand. J. Rehabil. Med., vol. 11, no. 4, pp. 189–193, 1979.

23. J. H. Cauraugh, S. B. Kim, and A. Duley, “Coupled bilateral movements and active neuromuscular stimulation: Intralimb transfer evidence during bimanual aiming,” Neurosci. Lett., vol. 382, nos. 1–2, pp. 39–44, Jul. 2005.

24. J. S. Knutson, D. D. Gunzler, R. D. Wilson, and J. Chae, “Contralaterally controlled functional electrical stimulation improves hand dexterity in chronic hemiparesis: A randomized trial,” Stroke, vol. 47, no. 10, pp. 2596–2602, Oct. 2016.

25. D. A. E. Bolton, J. H. Cauraugh, and H. A. Hausenblas, “Electromyogram-triggered neuromuscular stimulation and stroke motor recovery of arm/hand functions: A meta-analysis,” J. Neurol. Sci., vol. 223, no. 2, pp. 121–127, Aug. 2004.

26. M. K.-L. Chan, R. K.-Y. Tong, and K. Y.-W. Chung, “Bilateral upper limb training with functional electric stimulation in patients with chronic stroke,” Neurorehabilitation Neural Repair, vol. 23, no. 4, pp. 357–365, May 2009.

27. J. B. Manigandan, G. S. Ganesh, M. Pattnaik, and P. Mohanty, “Effect of electrical stimulation to long head of biceps in reducing gleno humeral subluxation after stroke,” Neuro Rehabil., vol. 34, no. 2, pp. 245–252, 2014.

28. S. Li, C. Zhuang, C. M. Niu, Y. Bao, Q. Xie, and N. Lan, “Evaluation of functional correlation of task-specific muscle synergies with motor performance in patients poststroke,” Frontiers Neurol., vol. 8, p. 337, Jul. 2017.

29. A. d’Avella, P. Saltiel, and E. Bizzi, “Combinations of muscle synergies in the construction of a natural motor behavior,” Nature Neurosci., vol. 6, no. 3, pp. 300–308, Mar. 2003.

30. V. C. K. Cheung, “Muscle synergy patterns as physiological markers of motor cortical damage,” Proc. Nat. Acad. Sci. USA, vol. 109, no. 36, pp. 14652–14656, Sep. 2012.

31. D. J. Clark, L. H. Ting, F. E. Zajac, R. R. Neptune, and S. A. Kautz, “Merging of healthy motor modules predicts reduced locomotor performance and muscle coordination complexity post-stroke,” J. Neurophysiol., vol. 103, no. 2, pp. 844–857, Feb. 2010.

32. E. Ambrosini, “Neuro-mechanics of recumbent leg cycling in post-acute stroke patients,” Ann. Biomed. Eng., vol. 44, pp. 3238–3251, Jun. 2016.

33. C. Zhuang, J. C. Marquez, H. E. Qu, X. He, and N. Lan, “A neuromuscular electrical stimulation strategy based on muscle synergy for stroke rehabilitation,” in Proc. IEEE 7th Int./EMBS Conf. Neural Eng. (NER), vol. 15, Apr. 2015, pp. 816–819.

34. R. S. Razavian, B. Ghannadi, N. Mehrabi, M. Charlet, and J. McPhee, “Feedback control of functional electrical stimulation for 2-D arm reaching movements,” IEEE Trans. Neural Syst. Rehabil. Eng., vol. 26, no. 10, pp. 2033–2043, Oct. 2018.

35. C. M. Niu, C. Zhuang, Y. Bao, S. Li, N. Lan, and Q. Xie, “Synergy-based NMES intervention accelerated rehabilitation of post-stroke hemiparesis,” in Proc. Assoc. Acad. Physiatrists Annu. Conf., Las Vegas, NV, USA, 2017.

36. H. Qu, “Development of network-based multichannel neuromuscular electrical stimulation system for stroke rehabilitation,” J. Rehabil. Res. Develop., vol. 52, no. 3, pp. 263–278, 2016.

37. C. M. Niu, “Effectiveness of short-term training with a synergy-based FES paradigm on motor function recovery post stroke,” in Proc. 12th Int. Soc. Phys. Rehabil. Med. World Congr., Paris, France, 2018.

38. T. Wang, “Customization of synergy-based FES for post-stroke rehabilitation of upper-limb motor functions,” in Proc. IEEE 40th Annu. Int. Conf. Eng. Med. Biol. Soc. (EMBS), Jul. 2018, 3541–3544.

39. L. L. Baker, D. R. McNeal, L. A. Benton, B. R. Bowman, and R. L. Waters, Ed., Neuromuscular Electrical Stimulation a Practical Guide, 4th ed. Downey, CA, USA: Los Amigos Research & Education Institute, 2000.

40. A. d’Avella, A. Portone, L. Fernandez, and F. Lacquaniti, “Control of fast-reaching movements by muscle synergy combinations.,” J. Neurosci., vol. 26, no. 30, pp. 7791–7810, Jul. 2006.

41. R. D. Wilson, “Upper-limb recovery after stroke: A randomized controlled trial comparing EMG-triggered, cyclic, and sensory electrical stimulation,” Neurorehabilitation Neural Repair, vol. 30, no. 10, pp. 978–987, Nov. 2016.

42. A. J. Levine, “Identification of a cellular node for motor control pathways,” Nature Neurosci., vol. 17, no. 4, pp. 586–593, Apr. 2014.

43. S. B. Frost, S. Barbay, K. M. Friel, E. J. Plautz, and R. J. Nudo, “Reorganization of remote cortical regions after ischemic brain injury: A potential substrate for stroke recovery,” J. Neurophysiol., vol. 89, no. 6, pp. 3205–3214, Jun. 2003.

44. P. Langhorne, J. Bernhardt, and G. Kwakkel, “Stroke rehabilitation,” Lancet, vol. 377, no. 9778, pp. 1693–1702, May 2011.

45. M. D. Ellis, B. G. Holubar, A. M. Acosta, R. F. Beer, and J. P. A. Dewald, “Modifiability of abnormal isometric elbow and shoulder joint torque coupling after stroke,” Muscle Nerve, vol. 32, pp. 170–178, Aug. 2005.

46. J. P. A. Dewald, P. S. Pope, J. D. Given, T. S. Buchanan, and W. Z. Rymer, “Abnormal muscle coactivation patterns during isometric torque generation at the elbow and shoulder in hemiparetic subjects,” Brain, vol. 118, no. 2, pp. 495–510, 1995.

47. D. G. Kamper, A. N. McKenna-Cole, L. E. Kahn, and D. J. Reinkensmeyer, “Alterations in reaching after stroke and their relation to movement direction and impairment severity,” Arch. Phys. Med. Rehabil., vol. 83, no. 5, pp. 702–707, May 2002.

48. C. L. Massie, S. Fritz, and M. P. Malcolm, “Elbow extension predicts motor impairment and performance after stroke,” Rehabil. Res. Pract., vol. 2011, pp. 1–7, 2011.

49. V. C. K. Cheung, L. Piron, M. Agostini, S. Silvoni, A. Turolla, and E. Bizzi, “Stability of muscle synergies for voluntary actions after cortical stroke in humans,” Proc. Nat. Acad. Sci. USA, vol. 106, no. 46, pp. 19563–19568, Nov. 2009.

50. J. Roh, W. Z. Rymer, and R. F. Beer, “Robustness of muscle synergies underlying three-dimensional force generation at the hand in healthy humans,” J. Neurophysiol., vol. 107, no. 8, pp. 2123–2142, Apr. 2012.

51. J. Roh, W. Z. Rymer, and R. F. Beer, “Evidence for altered upper extremity muscle synergies in chronic stroke survivors with mild and moderate impairment,” Frontiers Hum. Neurosci., vol. 9, p. 6, Feb. 2015.

52. J. Roh, W. Z. Rymer, E. J. Perreault, S. B. Yoo, and R. F. Beer, “Alterations in upper limb muscle synergy structure in chronic stroke survivors,” J. Neurophysiol., vol. 109, no. 3, pp. 768–781, Feb. 2013.

53. W. H. Backes, W. H. Mess, V. van Kranen-Mastenbroek, and J. P. H. Reulen, “Somatosensory cortex responses to median nerve stimulation: fMRI effects of current amplitude and selective attention,” Clin. Neurophysiol., vol. 111, no. 10, pp. 1738–1744, Oct. 2000.

54. G. Francisco, “Electromyogram-triggered neuromuscular stimulation for improving the arm function of acute stroke survivors: A randomized pilot study,” Arch. Phys. Med. Rehabil., vol. 79, no. 5, pp. 570–575, May 1998.

55. S. K. Sabut, C. Sikdar, R. Kumar, and M. Mahadevappa, “Functional electrical stimulation of dorsiflexor muscle: Effects on dorsiflexor strength, plantarflexor spasticity, and motor recovery in stroke patients,” Neurorehabilitation, vol. 29, no. 4, pp. 393–400, 2011.

56. Y.-H. Wang, F. Meng, Y. Zhang, M.-Y. Xu, and S.-W. Yue, “Full-movement neuromuscular electrical stimulation improves plantar flexor spasticity and ankle active dorsiflexion in stroke patients: A randomized controlled study,” Clin. Rehabil., vol. 30, no. 6, pp. 577–586, Jun. 2016.

57. W. H. Chang and Y.-H. Kim, “Robot-assisted therapy in stroke rehabilitation,” J. Stroke, vol. 15, no. 3, p. 174, 2013.

58. H. G. Wu, Y. R. Miyamoto, L. N. G. Castro, B. P. Ölveczky, and M. A. Smith, “Temporal structure of motor variability is dynamically regulated and predicts motor learning ability,” Nature Neurosci., vol. 17, no. 2, pp. 312–321, Jan. 2014.

59. J. Frère and F. Hug, “Between-subject variability of muscle synergies during a complex motor skill,” Frontiers Comput. Neurosci., vol. 6, p. 99, Dec. 2012.

60. S. Muceli, A. T. Boye, A. d’Avella, and D. Farina, “Identifying representative synergy matrices for describing muscular activation patterns during multidirectional reaching in the horizontal plane,” J. Neurophysiol., vol. 103, no. 3, pp. 1532–1542, Mar. 2010.

61. J. F. Soechting and F. Lacquaniti, “Invariant characteristics of a pointing movement in man,” J. Neurosci., vol. 1, no. 7, pp. 710–720, Jul. 1981.

62. B. Cesqui, A. d’Avella, A. Portone, and F. Lacquaniti, “Catching a ball at the right time and place: Individual factors matter,” PLoS ONE, vol. 7, no. 2, p. e31770, Feb. 2012.



via Synergy-Based FES for Post-Stroke Rehabilitation of Upper-Limb Motor Functions – IEEE Journals & Magazine

, , , , , , , , , , , ,

Leave a comment

[Abstract] How effective is physical therapy for gait muscle activity in hemiparetic patients who receive botulinum toxin injections?

Abstract

BACKGROUND: Administration of botulinum neurotoxin A (BoNT-A) to the ankle plantar flexors in patients with hemiplegia reduces the strength of knee extension, which may decrease their walking ability. Studies have reported improvements in walking ability with physical therapy following BoNT-A administration. However, no previous studies have evaluated from an exercise physiology perspective the efficacy of physical therapy after BoNT-A administration for adult patients with hemiplegia.

AIM: To investigate the effects of physical therapy following BoNT-A administration on gait electromyography for patients with hemiparesis secondary to stroke.

DESIGN: Non-randomized controlled trial.

SETTING: Single center.

POPULATION: Thirty-five patients with chronic stroke with spasticity were assigned to BoNT-A monotherapy (N.=18) or BoNT-A plus physical therapy (PT) (N.=17).

METHODS: On the paralyzed side of the body, 300 single doses of BoNT-A were administered intramuscularly to the ankle plantar flexors. Physical therapy was performed for 2 weeks, starting from the day after administration. Gait electromyography was performed and gait parameters were measured immediately before and 2 weeks after BoNT-A administration. Relative muscle activity, coactivation indices, and walking time/distance were calculated for each phase.

RESULTS: For patients who received BoNT-A monotherapy, soleus activity during the loading response decreased 2 weeks after the intervention (P<0.01). For those who received BoNT-A+PT, biceps femoris activity and knee coactivation index during the loading response and tibialis anterior activity during the pre-swing phases increased, whereas soleus and rectus femoris activities during the swing phase decreased 2 weeks after the intervention (P<0.05). These rates of change were significantly greater than those for patients who received BoNT-A monotherapy (P<0.05).
CONCLUSIONS: Following BoNT-A monotherapy, soleus activity during the stance phase decreased and walking ability either remained unchanged or deteriorated. Following BoNT-A+PT, muscle activity and knee joint stability increased during the stance phase, and abnormal muscle activity during the swing phase was suppressed.

CLINICAL REHABILITATION IMPACT: If botulinum treatment of the ankle plantar flexors in stroke patients is targeted to those with low knee extension strength, or if it aims to improve leg swing on the paralyzed side of the body, then physical therapy following BoNT-A administration could be an essential part of the treatment strategy.

HTML PDF

via How effective is physical therapy for gait muscle activity in hemiparetic patients who receive botulinum toxin injections? – European Journal of Physical and Rehabilitation Medicine 2019 February;55(1):8-18 – Minerva Medica – Journals

, , , , , , ,

Leave a comment

[Abstract] Electromyogram-Related Neuromuscular Electrical Stimulation for Restoring Wrist and Hand Movement in Poststroke Hemiplegia: A Systematic Review and Meta-Analysis

Background. Clinical trials have demonstrated some benefits of electromyogram-triggered/controlled neuromuscular electrical stimulation (EMG-NMES) on motor recovery of upper limb (UL) function in patients with stroke. However, EMG-NMES use in clinical practice is limited due to a lack of evidence supporting its effectiveness.

Objective. To perform a systematic review and meta-analysis to determine the effects of EMG-NMES on stroke UL recovery based on each of the International Classification of Functioning, Disability, and Health (ICF) domains.

Methods. Database searches identified clinical trials comparing the effect of EMG-NMES versus no treatment or another treatment on stroke upper extremity motor recovery. A meta-analysis was done for outcomes at each ICF domain (Body Structure and Function, Activity and Participation) at posttest (short-term) and follow-up periods. Subgroup analyses were conducted based on stroke chronicity (acute/subacute, chronic phases). Sensitivity analysis was done by removing studies rated as poor or fair quality (PEDro score <6).

Results. Twenty-six studies (782 patients) met the inclusion criteria. Fifty percent of them were considered to be of high quality. The meta-analysis showed that EMG-NMES has a robust short-term effect on improving UL motor impairment in the Body Structure and Function domain. No evidence was found in favor of EMG-NMES for the Activity and Participation domain. EMG-NMES had a stronger effect for each ICF domain in chronic (≥3 months) compared to acute/subacute phases.

Conclusion. EMG-NMES is effective in the short term in improving UL impairment in individuals with chronic stroke.



via Electromyogram-Related Neuromuscular Electrical Stimulation for Restoring Wrist and Hand Movement in Poststroke Hemiplegia: A Systematic Review and Meta-Analysis – Katia Monte-Silva, Daniele Piscitelli, Nahid Norouzi-Gheidari, Marc Aureli Pique Batalla, Philippe Archambault, Mindy F. Levin, 2019

, , , , , , , , , , ,

Leave a comment

[ARTICLE] Effectiveness of Robot-Assisted Upper Limb Training on Spasticity, Function and Muscle Activity in Chronic Stroke Patients Treated With Botulinum Toxin: A Randomized Single-Blinded Controlled Trial – Full Text

Background: The combined use of Robot-assisted UL training and Botulinum toxin (BoNT) appear to be a promising therapeutic synergism to improve UL function in chronic stroke patients.

Objective: To evaluate the effects of Robot-assisted UL training on UL spasticity, function, muscle strength and the electromyographic UL muscles activity in chronic stroke patients treated with Botulinum toxin.

Methods: This single-blind, randomized, controlled trial involved 32 chronic stroke outpatients with UL spastic hemiparesis. The experimental group (n = 16) received robot-assisted UL training and BoNT treatment. The control group (n = 16) received conventional treatment combined with BoNT treatment. Training protocols lasted for 5 weeks (45 min/session, two sessions/week). Before and after rehabilitation, a blinded rater evaluated patients. The primary outcome was the Modified Ashworth Scale (MAS). Secondary outcomes were the Fugl-Meyer Assessment Scale (FMA) and the Medical Research Council Scale (MRC). The electromyographic activity of 5 UL muscles during the “hand-to-mouth” task was explored only in the experimental group and 14 healthy age-matched controls using a surface Electromyography (EMGs).

Results: No significant between-group differences on the MAS and FMA were measured. The experimental group reported significantly greater improvements on UL muscle strength (p = 0.004; Cohen’s d = 0.49), shoulder abduction (p = 0.039; Cohen’s d = 0.42), external rotation (p = 0.019; Cohen’s d = 0.72), and elbow flexion (p = 0.043; Cohen’s d = 1.15) than the control group. Preliminary observation of muscular activity showed a different enhancement of the biceps brachii activation after the robot-assisted training.

Conclusions: Robot-assisted training is as effective as conventional training on muscle tone reduction when combined with Botulinum toxin in chronic stroke patients with UL spasticity. However, only the robot-assisted UL training contributed to improving muscle strength. The single-group analysis and the qualitative inspection of sEMG data performed in the experimental group showed improvement in the agonist muscles activity during the hand-to-mouth task.

Introduction

Upper limb (UL) sensorimotor impairments are one of the major determinants of long-term disability in stroke survivors (1). Several disturbances are the manifestation of UL impairments after stroke (i.e., muscle weakness, changes in muscle tone, joint disturbances, impaired motor control). However, spasticity and weakness are the primary reason for rehabilitative intervention in the chronic stages (13). Historically, spasticity refers to a velocity-dependent increase in tonic stretch reflexes with exaggerated tendon jerks resulting from hyperexcitability of the stretch reflex (4) while weakness is the loss of the ability to generate the normal amount of force.

From 7 to 38% of post-stroke patients complain of UL spasticity in the first year (5). The pathophysiology of spasticity is complicated, and new knowledge has progressively challenged this definition. Processes involving central and peripheral mechanisms contribute to the spastic movement disorder resulting in abnormal regulation of tonic stretch reflex and increased muscle resistance of the passively stretched muscle and deficits in agonist and antagonist coactivation (67). The resulting immobilization of the muscle at a fixed length for a prolonged time induces secondary biomechanical and viscoelastic properties changes in muscles and soft tissues, and pain (811). These peripheral mechanisms, in turn, leads to further stiffness, and viscoelastic muscle changes (28). Whether the muscular properties changes may be adaptive and secondary to paresis are uncertain. However, the management of UL spasticity should combine treatment of both the neurogenic and peripheral components of spasticity (910).

UL weakness after stroke is prevalent in both acute and chronic phases of recovery (3). It is a determinant of UL function in ADLs and other negative consequences such as bone mineral content (3), atrophy and altered muscle pattern of activation. Literature supports UL strengthening training effectiveness for all levels of impairment and in all stages of recovery (3). However, a small number of trials have been performed in chronic subgroup patients, and there is still controversy in including this procedure in UL rehabilitation (3).

Botulinum toxin (BoNT) injection in carefully selected muscles is a valuable treatment for spastic muscles in stroke patients improving deficits in agonist and antagonist coactivation, facilitating agonist recruitment and increasing active range of motion (681214). However, improvements in UL activity or performance is modest (13). With a view of improving UL function after stroke, moderate to high-quality evidence support combining BoNT treatment with other rehabilitation procedures (1915). Specifically, the integration of robotics in the UL rehabilitation holds promise for developing high-intensity, repetitive, task-specific, interactive treatment of upper limb (15). The combined use of these procedures to compensate for their limitations has been studied in only one pilot RCT reporting positive results in UL function (Fugl-Meyer UL Assessment scale) and muscular activation pattern (16). With the limits of the small sample, the results support the value of combining high-intensity UL training by robotics and BoNT treatment in patients with UL spastic paresis.

Clinical scales are currently used to assess the rehabilitation treatment effects, but these outcome measures may suffer from some drawbacks that can be overcome by instrumental assessment as subjectivity, limited sensitivity, and the lack of information on the underlying training effects on motor control (17). Instrumental assessment, such as surface electromyography (sEMG) during a functional task execution allows assessing abnormal activation of spastic muscles and deficits of voluntary movements in patients with stroke.

Moreover, the hand-to-mouth task is representative of Activities of Daily Life (ADL) such as eating and drinking. Kinematic analysis of the hand-to-mouth task has been widely used to assess UL functions in individuals affected by neurological diseases showing adequate to more than adequate test-retest reliability in healthy subjects (1819). The task involves flexing the elbow a slightly flexing the shoulder against gravity, and it is considered to be a paradigmatic functional task for the assessment of spasticity and strength deficits on the elbow muscles (1720). Although sEMG has been reported to be a useful assessment procedure to detect muscle activity improvement after rehabilitation, limited results have been reported (1621).

The primary aim of this study was to explore the therapeutic synergisms of combined robot-assisted upper limb training and BoNT treatment on upper limb spasticity. The secondary aim was to evaluate the treatment effects on UL function, muscle strength, and the electromyographic activity of UL muscles during a functional task.

The combined treatment would contribute to decrease UL spasticity and improve function through a combination of training effects between BoNT neurolysis and the robotic treatment. A reduction of muscle tone would parallel improvement in muscle strength ought to the high-intensity, repetitive and task-specific robotic training. Since spasticity is associated with abnormal activation of shortening muscles and deficits in voluntary movement of the UL, the sEMG assessment would target these impairments (281115).

Materials and Methods

Trial Design

A single-blind RCT with two parallel group is reported. The primary endpoint was the changes in UL spasticity while the secondary endpoints were changes in UL function, muscle strength and the electromyographic activity of UL muscles during a functional task. The study was conducted according to the tenets of the Declaration of Helsinki, the guidelines for Good Clinical Practice, and the Consolidated Standards of Reporting Trials (CONSORT), approved by the local Ethics Committee “Nucleo ricerca clinica–Research and Biostatistic Support Unit” (prog n.2366), and registered at clinical trial (NCT03590314).

Patients

Chronic post-stroke patients with upper-limb spasticity referred to the Neurorehabilitation Unit (AOUI Verona) and the Physical Medicine and Rehabilitation Section, “OORR” Hospital (University of Foggia) were assessed for eligibility.

Inclusion criteria were: age > 18 years, diagnosis of ischemic or hemorrhagic first-ever stroke as documented by a computerized tomography scan or magnetic resonance imaging, at least 6 months since stroke, Modified Ashworth Scale (MAS) score (shoulder and elbow) ≤ 3 and ≥1+ (22), BoNT injection within the previous 12 weeks of at least one of muscles of the affected upper limb, Mini-Mental State Examination (MMSE) score ≥24 (23) and Trunk Control Test score = 100/100 (24).

Exclusion criteria were: any rehabilitation intervention in the 3 months before recruitment, bilateral cerebrovascular lesion, severe neuropsychologic impairment (global aphasia, severe attention deficit or neglect), joint orthopedic disorders.

All participants were informed regarding the experimental nature of the study. Informed consent was obtained from all subjects. The local ethics committee approved the study.

Interventions

Each patient underwent a BoNT injection in the paretic limb. The dose of BoNT injected into the target muscle was based on the severity of spasticity in each case. Different commercial formulations of BoNT were used according to the pharmaceutical portfolio contracts of our Hospitals (Onabotulinumtoxin A, Abobotulinumtoxin A, and Incobotulinumtoxin A). The dose, volume and number of injection sites were set accordingly. A Logiq ® Book XP portable ultrasound system (GE Healthcare; Chalfont St. Giles, UK) was used to inject BoNT into the target muscle.

Before the start of the study authors designed the experimental (EG) and the control group (CG) protocols. Two physiotherapists, one for each group, carried out the rehabilitation procedures. Patients of both groups received ten individual sessions (45 min/session, two sessions/week, five consecutive weeks). Treatments were performed in the rehabilitative gym of the G. B. Rossi University Hospital Neurological Rehabilitation Unit, or “OORR” Hospital.

Robot-Assisted UL Training

The Robot-assisted UL Training group was treated using the electromechanical device Armotion (Reha Technology, Olten, Switzerland). It is an end-effector device that allows goal-directed arm movements in a bi-dimensional space with visual feedback. It offers different training modalities such as passive, active, passive-active, perturbative, and assistive modes. The robot can move, drive or oppose the patient’s movement and allows creating a personalized treatment, varying parameters such as some repetitions, execution speed, resistance degree of motion. The exercises available from the software are supported by games that facilitate the functional use of the paretic arm (25). The robot is equipped with a control system called “impedance control” that modulates the robot movements for adapting to the motor behavior of the patient’s upper limb. The joints involved in the exercises were the shoulder and the elbow, is the wrist fixed to the device.

The Robot-assisted UL Training consisted of passive mobilization and stretching exercises for affected UL (10 min) followed by robot-assisted exercises (35 min). Four types of exercises contained within the Armotion software and amount of repetitions were selected as follows: (i) “Collect the coins” (45–75 coins/10 min), (ii) “Drive the car” (15–25 laps/10 min), (iii) “Wash the dishes” (40–60 repetitions/10 min), and (iv) “Burst the balloons” (100–150 balloons/5 min) (Figure 1). All exercises were oriented to achieving several goals in various directions, emphasizing the elbow flexion-extension and reaching movement. The robot allows participants to execute the exercises through an “assisted as needed” control strategy. For increment the difficulty, we have varied the assisted and non-assisted modality, increasing the number of repetitions over the study period.[…]



Figure 1. The upper limb robot-assisted training setting.

Continue —> Frontiers | Effectiveness of Robot-Assisted Upper Limb Training on Spasticity, Function and Muscle Activity in Chronic Stroke Patients Treated With Botulinum Toxin: A Randomized Single-Blinded Controlled Trial | Neurology

, , , , , , , , , ,

Leave a comment

[ARTICLE] Variation of Finger Activation Patterns Post-stroke Through Non-invasive Nerve Stimulation – Full Text

Purpose: A transcutaneous proximal nerve stimulation technique utilizing an electrode grid along the nerve bundles has previously shown flexible activation of multiple fingers. This case study aimed to further demonstrate the ability of this novel stimulation technique to induce various finger grasp patterns in a stroke survivor.

Methods: An individual with chronic hemiplegia and severe hand impairment was recruited. Electrical stimulation was delivered to different pairs of an electrode grid along the ulnar and median nerves to selectively activate different finger flexor muscles, with an automated electrode switching method. The resultant individual isometric flexion forces and forearm flexor high-density electromyography (HDEMG) were acquired to evaluate the finger activation patterns. A medium and low level of overall activation were chosen to gauge the available finger patterns for both the contralateral and paretic hands. All the flexion forces were then clustered to categorize the different types of grasp patterns.

Results: Both the contralateral and paretic sides demonstrated various force clusters including single and multi-finger activation patterns. The contralateral hand showed finger activation patterns mainly centered on median nerve activation of the index, middle, and ring fingers. The paretic hand exhibited fewer total activation patterns, but still showed activation of all four fingers in some combination.

Conclusion: Our results show that electrical stimulation at multiple positions along the proximal nerve bundles can elicit a select variety of finger activation patterns even in a stroke survivor with minimal hand function. This system could be further implemented for better rehabilitative training to help induce functional grasp patterns or to help regain muscle mass.

Introduction

Following a stroke, a majority of individuals have paresis due to a loss of excitatory input and subsequent complications, such as disuse atrophy (1) and altered spinal organization (24). This loss of voluntary control of muscle activation often limits activities of daily living. Neuromuscular electrical stimulation (NMES) has been widely utilized both in the clinic and in research settings to help restore atrophied muscle and lost functions (57). Electrical stimulation has been particularly successful with post-stroke survivors for functional recovery (810). Research in NMES also aims to restore functional activation of muscles, such as the restoration of hand grasps (11).

Traditionally, NMES uses large electrode pads, targeting the distal branches of the nerve, known as the motor point stimulation (12). Although stimulation of the motor point is straightforward methodologically, NMES is limited to localized muscle activation, which limits its functional efficacy and also leads to rapid muscle fatigue (13). Advances in NMES techniques to alleviate these issues involve various multi-electrode techniques, which can stimulate multiple small regions of the muscle to help distribute the current and potentially activate more muscle fibers (1415). Crema et al. has also demonstrated flexible activation of multiple fingers using a multi-electrode array across the forearm and hand (16). Other approaches to NMES involve stimulation of the nerve bundle prior to branching and innervating a muscle, which has shown to allow for a larger area of muscle activation and potentially reduce long-term fatigue effects (1719).

Recent developments have demonstrated the capabilities of an alternative non-invasive transcutaneous electrical nerve stimulation method targeting the ulnar and median nerves proximal to the elbow to flexibly activate individual and multiple fingers (2021). In addition, this technique shows the ability to delay the force decline (2223). A stimulation electrode grid placed along the two nerves allows us to activate different muscles or muscle portions to elicit varied desired movements, but manually switching between different electrode pairs is time-consuming. To shorten this process, an automated electrode pair searching method has been developed and tested on intact control subjects (24). This new method can further categorize the total available sets of finger activation patterns across the entire electrode grid, providing valuable information on electrode selection and the force generation capacity of stroke muscles. However, the efficiency of this method has not been tested on stroke survivors. Therefore, this case study recruited a control subject and a stroke survivor with severe weakness of the right arm, and evaluated the available finger activation patterns of the subjects. Our results showed varied activation of multiple fingers from both subjects. Further development of this stimulation technique can provide valuable alternatives to current rehabilitation for the restoration of hand movements.[…]



Continue —> Frontiers | Variation of Finger Activation Patterns Post-stroke Through Non-invasive Nerve Stimulation | Neurology

Figure 1. Experimental Setup and Data Samples. (A) Stimulation Electrode Array and Force/HDEMG Setup. Processed Data samples are displayed adjacent to the setup figure. (B) The EMG map is the spatial map of calculated AUC values from each EMG channel’s CMAP and (C) the Force Profile is the smoothed force of each finger. (D) Sample Depiction of Automated Stimulation Procedure. Each stimulation pair can be paired with an EMG activity map and a force profile, which is the repetition of 3 stimulations.

, , , , , , , , , , , ,

Leave a comment

[Abstract] EMG Feature Extractions for Upper-Limb Functional Movement During Rehabilitation

Abstract

Rehabilitation is important treatment for post stroke patient to regain their muscle strength and motor coordination as well as to retrain their nervous system. Electromyography (EMG) has been used by researcher to enhance conventional rehabilitation method as a tool to monitor muscle electrical activity however EMG signal is very stochastic in nature and contains some noise. Special technique is yet to be researched in processing EMG signal to make it useful and effective both to researcher and to patient in general. Feature extraction is among the signal processing technique involved and the best method for specific EMG study needs to be applied. In this works, nine feature extractions techniques are applied to EMG signals recorder from subjects performing upper limb rehabilitation activity based on suggested movement sequence pattern. Three healthy subjects perform the experiment with three trials each and EMG data were recorded from their bicep and deltoid muscle. The applied features for every trials of each subject were analyzed statistically using student T-Test their significant of p-value. The results were then totaled up and compared between the nine features applied and Auto Regressive coefficient (AR) present the best result and consistent with each subjects’ data. This feature will be used later in our future research work of Upper-limb Virtual Reality Rehabilitation.

via EMG Feature Extractions for Upper-Limb Functional Movement During Rehabilitation – IEEE Conference Publication

, , , , , , , , , , , ,

Leave a comment

%d bloggers like this:
